United Electric Controls 6282-169 Circular Charts
SKU
6282169
Brand
United Electric Controls
$121.54
Need Help
Assistance Available
Easy Returns
Quick & Hassle Fee
Guaranteed Fit
Always the correct part
Overview

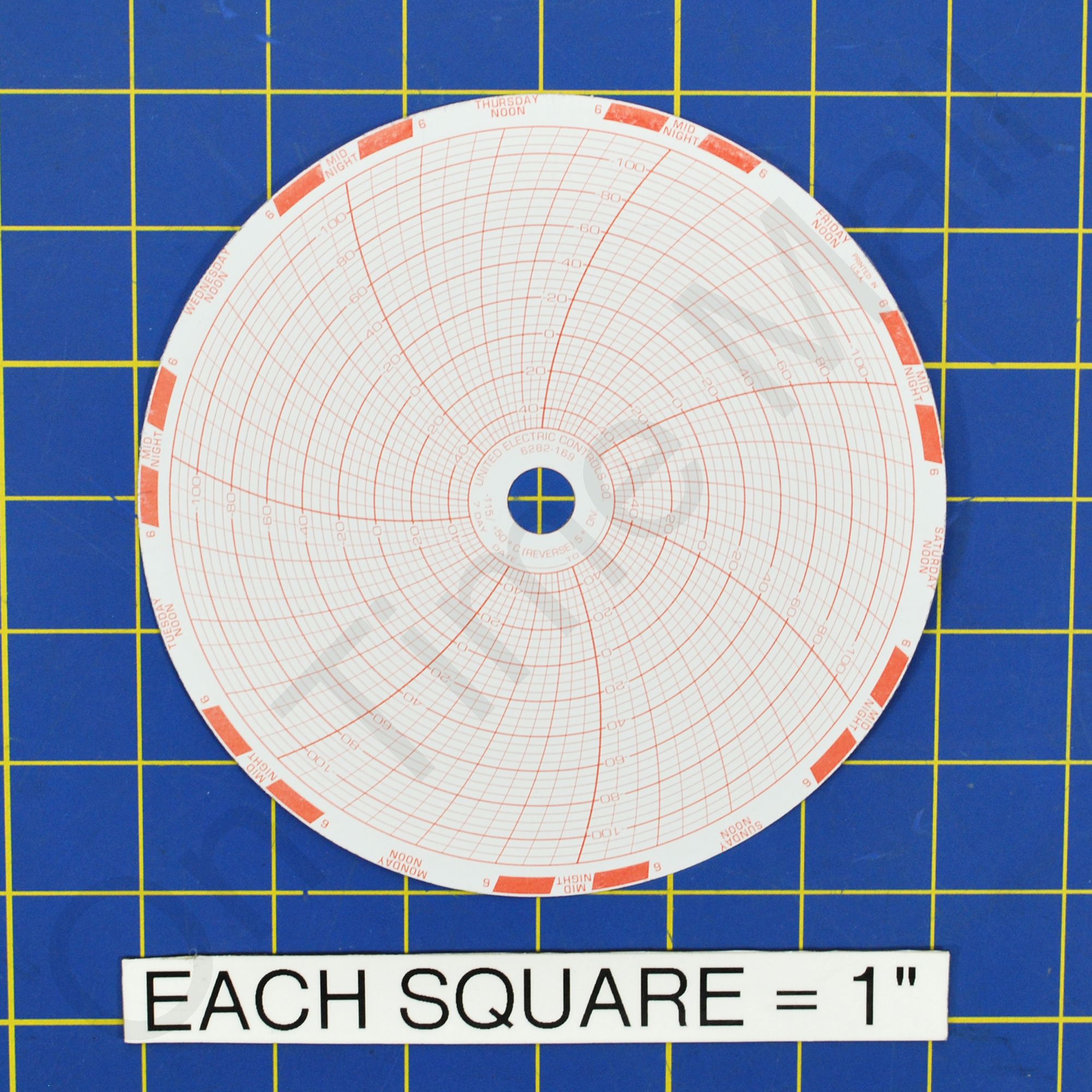

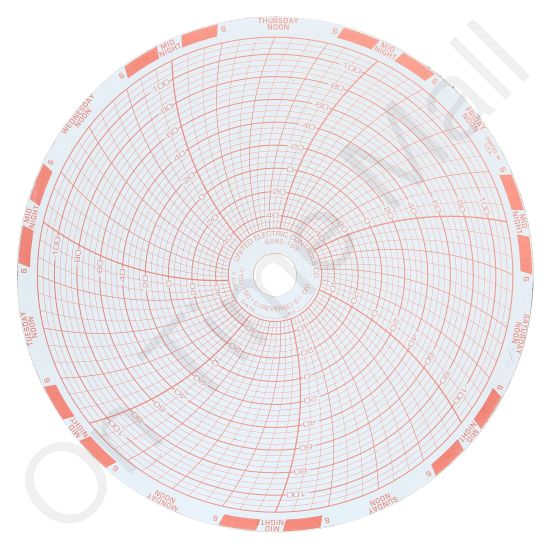

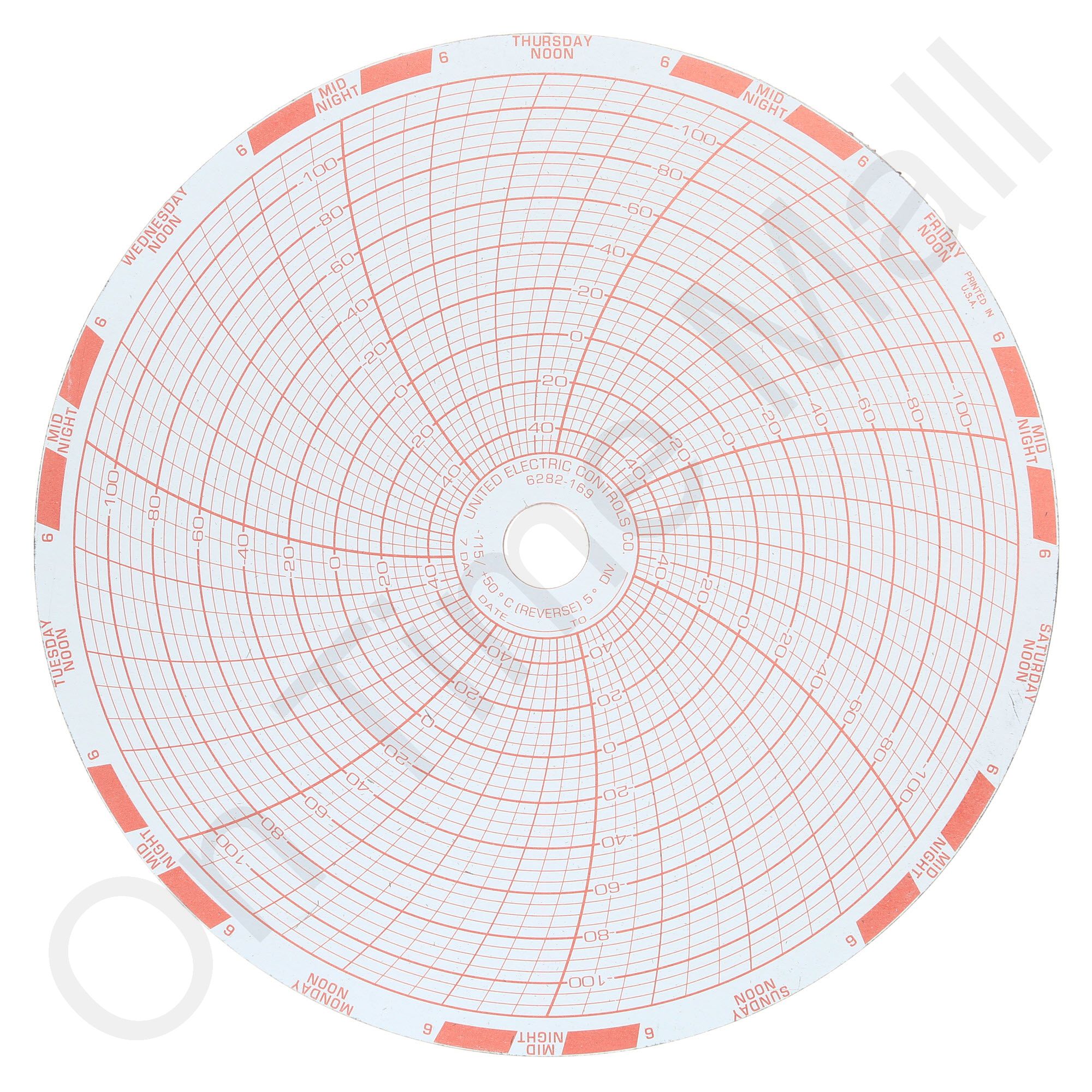

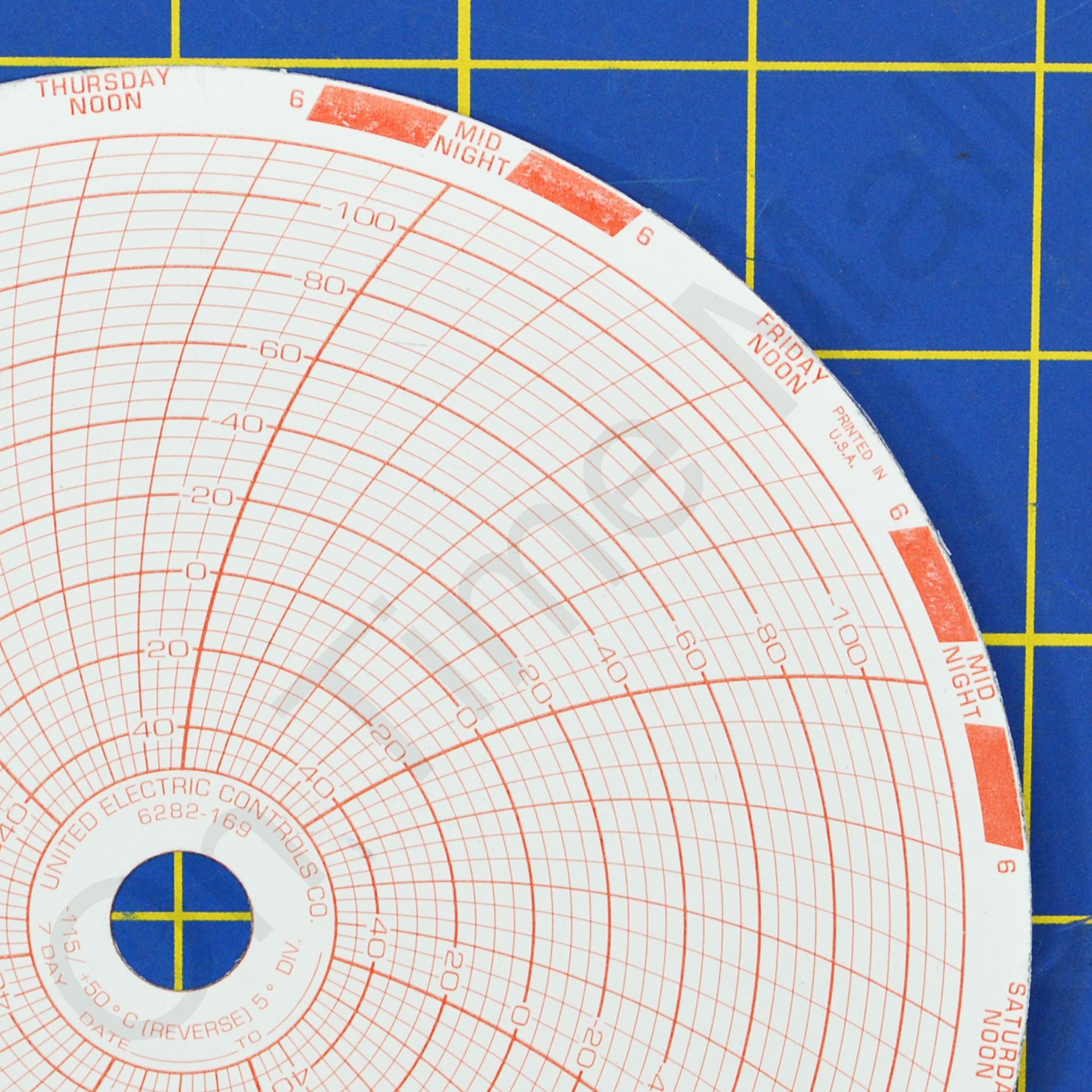

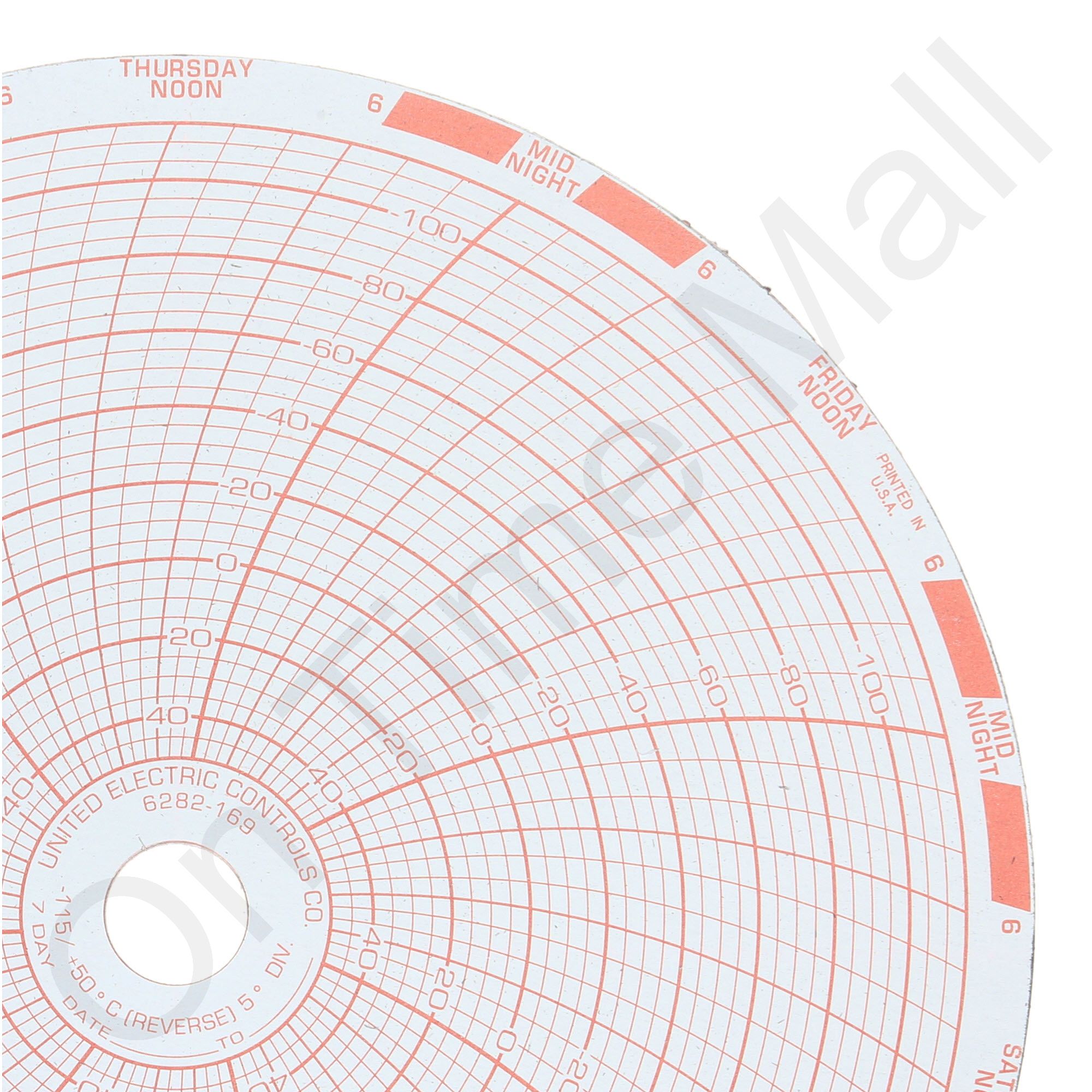

United Electric Controls 6282-169 Circular Charts for United Electric Controls industrial chart recorder. Package contains 50 circular charts. This item is also known as part C6282-169, 0103014, 90520H07 and 00960831. This chart is a pressure sensitive chart that doesn't require ink based pens, but rather a pointed tip pen arm that marks the paper on contact.
Specifications
| Manufacturer | United Electric Controls |
|---|---|
| Part Type | Circular Chart Paper |
| Chart Paper Type | Non-Thermal |
| Chart Size | 6.00 to 6.99 |
| Chart Rotation Time | 7 Day |
| Number of Ranges | 1 |
| Chart Range 1 | 50 - -115 Non-Uniform -115/+50 °C (REVERSE) [in chart masthead] (40 TO 0 TO -100 BY 20) |
| Chart Minimum Range | -101 and lower |
| Chart Maximum Range | 50-99 |
| Quantity Included | 50 Sheets |
| Product Length | 6 inches (15.240 cm) |
| Product Width | 6 inches (15.240 cm) |
| Product Height | 0.004 inches (0.010 cm) |
| Product Weight | 0.011 lbs (0.005 kg) |
| Material | Paper |
| Country of Origin | United States |
| Schedule B Number | 4811.60.6000 |
| Shipping Length | 6.375 inches (16.193 cm) |
| Shipping Width | 6.375 inches (16.193 cm) |
| Shipping Height | 0.55 inches (1.397 cm) |
