Chessell HKTW0100T2727 Circular Charts
SKU
HKTW0100T2727
Brand
Chessell
$92.05
Need Help
Assistance Available
Easy Returns
Quick & Hassle Fee
Guaranteed Fit
Always the correct part
Overview

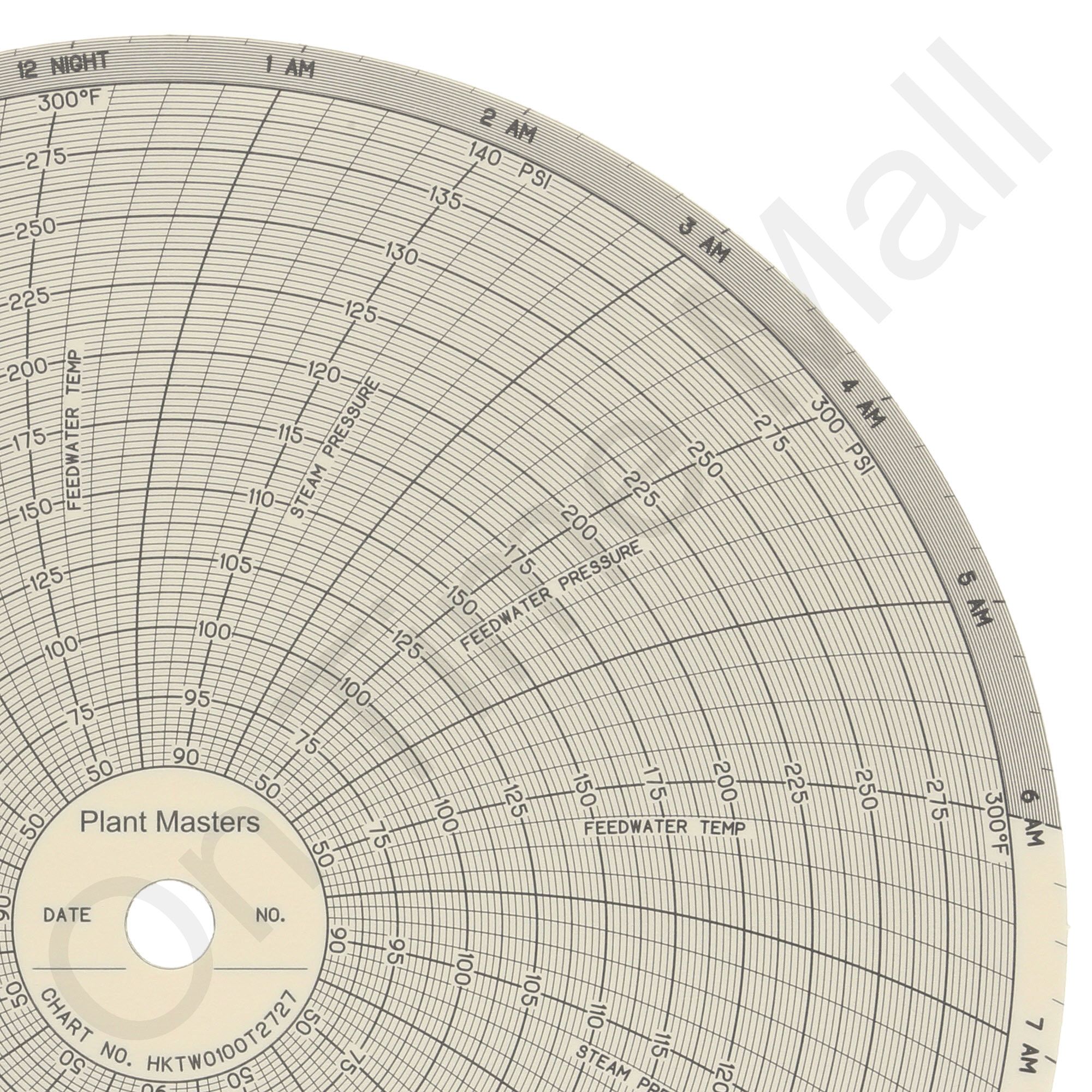

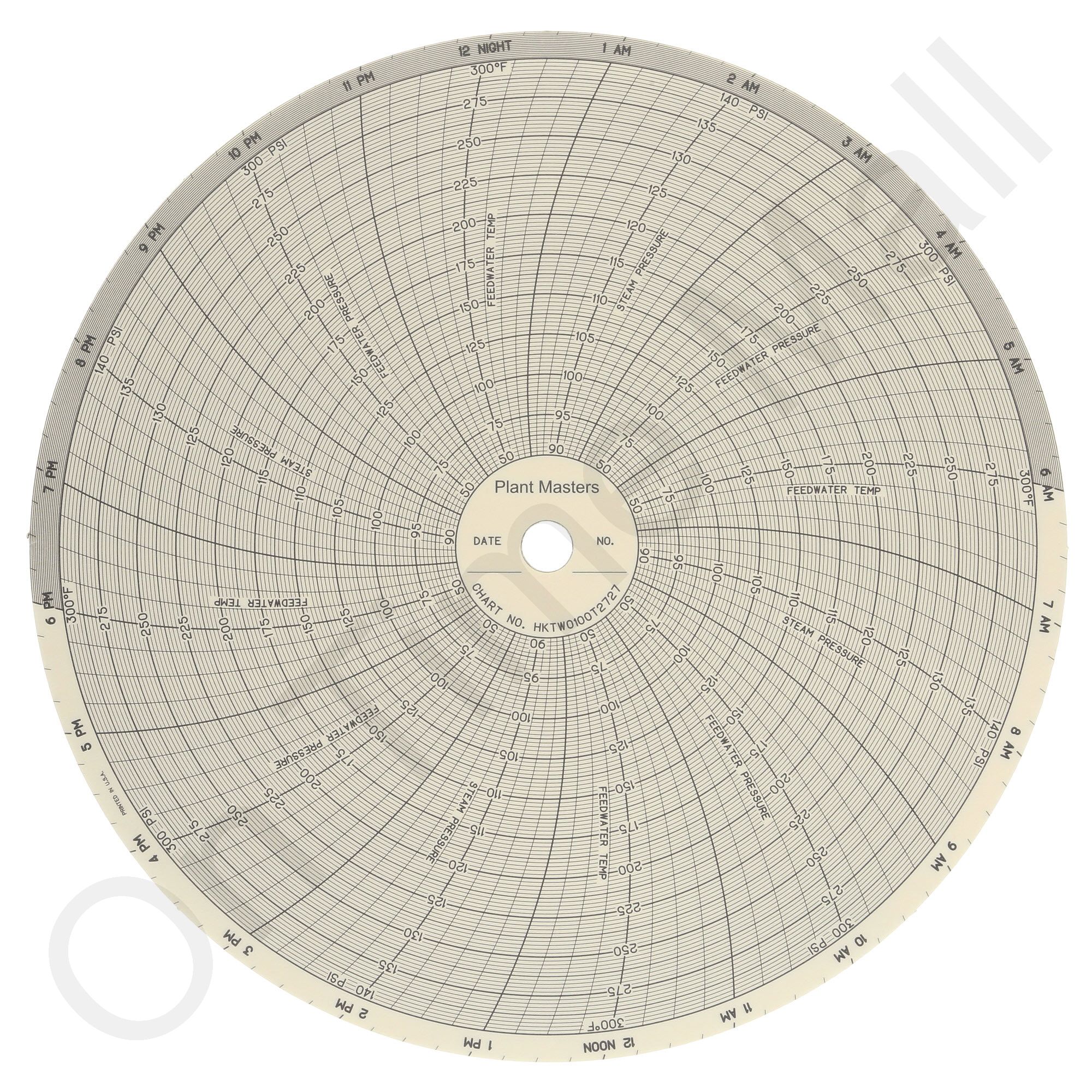

Chessell HKTW0100T2727 Circular Charts. Replacement round circular charts for Chessell industrial chart recorder. Package contains 100 circular charts.
Specifications
| Manufacturer | Chessell |
|---|---|
| Part Type | Circular Chart Paper |
| Chart Paper Type | Non-Thermal |
| Chart Size | 10.00 to 10.99 |
| Chart Rotation Time | 24 Hour |
| Number of Ranges | 3 |
| Chart Range 1 | 90 - 140 Uniform along the Arc STEAM PRESSURE (PSI @ COD) (90 TO 140 BY 5) |
| Chart Range 2 | 50 - 300 Uniform along the Arc FEED WATER PRESSURE (PSI @ COD) (50 TO 300 BY 25) |
| Chart Range 3 | 50 - 300 Uniform along the Arc FEED WATER TEMP (' F @ COD) (50 TO 300 BY 25) |
| Chart Minimum Range | 50-99 |
| Chart Maximum Range | 250-499 |
| Quantity Included | 100 Sheets |
| Product Length | 10 inches (25.400 cm) |
| Product Width | 10 inches (25.400 cm) |
| Product Height | 0.004 inches (0.010 cm) |
| Product Weight | 0.011 lbs (0.005 kg) |
| Material | Paper |
| Shipping Length | 11 inches (27.940 cm) |
| Shipping Width | 11 inches (27.940 cm) |
| Shipping Height | 0.55 inches (1.397 cm) |
